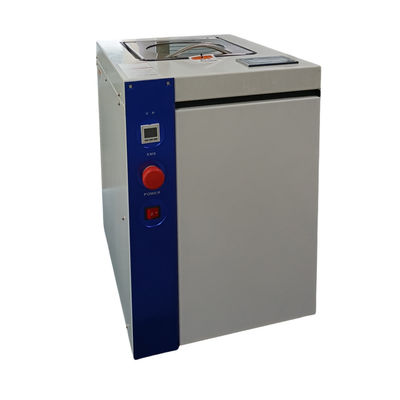

Planetary Vacuum Centrifugal Mixing and Degassing Machine Mix Deforming machine

The revolution and rotation drive of the device is driven by a frequency converter to drive the motor. The rotation speed is automatically set to 0.6 times the revolution speed through gear-to-gear transmission. The applicable viscosity of the glue is 300,000cps.

The operation mode can be divided into two types: manual mode (vacuum-assisted) and automatic mode (vacuum automatic).

The special fixture can be used to stir and deaerate the material to be stirred, or deaerate inside the syringe (the fixture is optional, please inquire for detailed specifications separately), and it is compatible with up to 200cc syringes.

The vacuum pump uses a high vacuum type.

1,Mix

The setting range of deaeration operation is as follows: The operation time of the stirring is 10 minutes (600 seconds), and the vacuum pump time is 10 minutes (600 seconds). When operated manually, the vacuum operates continuously without limit

#1)The total weight includes containers, materials, and fixtures.

2,The number of containers (# 2) that can be loaded during each operation is shown in the table below:

#2)If there are other types of containers or syringes, please make a request and a separate fixture can be made.

3,Operating mode:It is divided into two modes: automatic and manual. In automatic mode, the vacuum pump can be turned on and off, and in automatic mode, six modes can be memorized and stored.

4. device:The exterior is made of transparent high-strength tempered glass, and the mixing section of the machine can be clearly observed.

Technical parameters

• Model name	GRS-MV300
  Standard container	300ml * 2 Hdpe ( Φ77 * H85mm)
  maximum throughput	300g * 2
  Working principle	Planetary gravity (rotation/revolution=0.6 times fixed) stirring/defoaming
  revolution	Stepless speed regulation (300~2000rpm); Any input, with an accuracy of 1rpm
  rotation	0.6 times the revolution speed
  Maximum speed	2000rpm
  Drive mode	750W motor
  Vacuum flow rate	165L/min
  vacuum pressure	-98Kpa(#3), Accuracy of 0.1Kpa,
  Parameter storage capacity	Vacuum delay, adjustable vacuum degree
  Balance adjustment	6 groups
  set time	Bilateral counterweight balance adjustment
  control system	0-600 seconds * 3 segments (accuracy of 1 second)
  lubrication system	Double loop PLC control, Chinese interface, touch screen operation
  Main alarm function	Cup sleeve splash proof structure, passive lubrication, anti bearing wear
  Main safety functions	Loss of balance/lid not closed/overload
  Transmission mode	Automatically stop when an error occurs/automatically lock the upper cover during operation
  supply voltage	gear drive
  total power	AC220-240V (16A)
  External dimensions	1350W
  weight	Excluding protrusions of 400 (W) * 590 (H) * 580 (D)





  (#3) Vacuum limit pressure: MAX -95Kpa~-98Kpa (vacuum degree varies with atmospheric pressure), vacuum degree can be set freely.

Set environment

l Surrounding temperature: within the range of 10~45 ° C.

l Surrounding humidity: 20-85% RH range.

l Surrounding area of the device: horizontally placed on a sturdy desktop or floor, ensuring a space of 0.5M around the device.

Package

.The bundling of the device body is wrapped in packaging film, then packed in wooden boxes and fixed on the station board

Accessories

The host, accessories, and mixing fixtures are shown in the following list:
